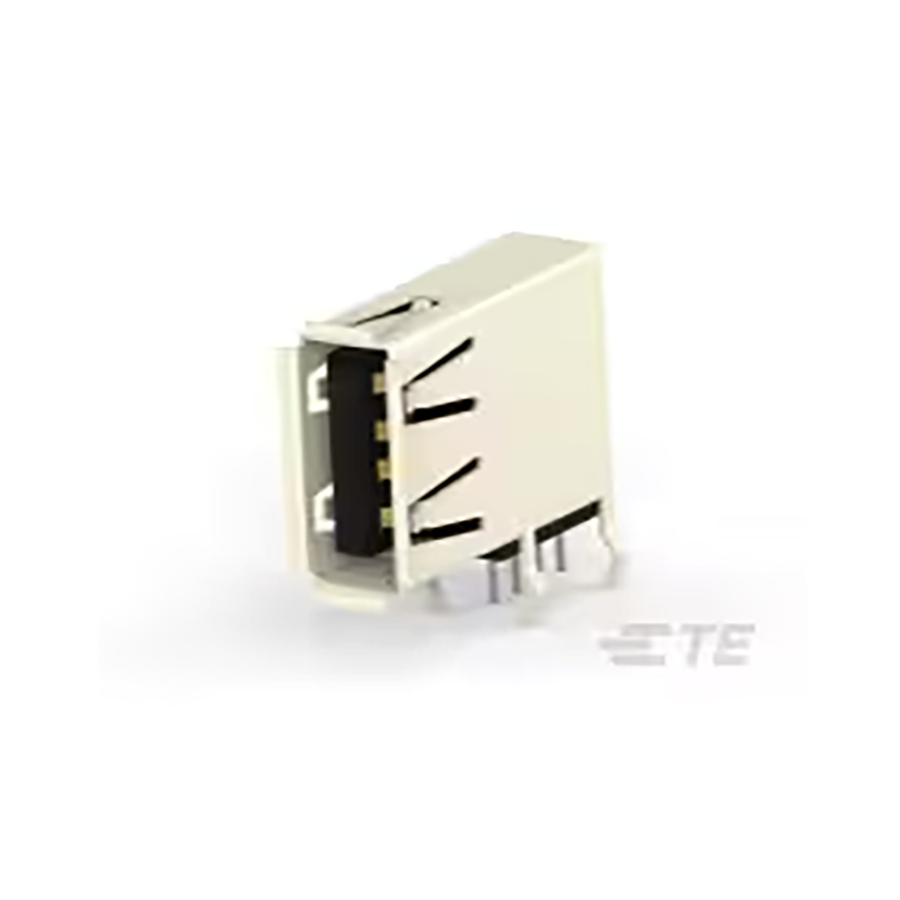

1-1734775-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1734775-1
Datasheet:
Description:
Audio / Video Connectors Through Hole Receptacle Number of Positions:4 Right Angle Receptacle
| Parameter | Value |
|---|---|
| Length | 7.32 mm |
| Termination | Through Hole |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Packaging | Tray |
| Depth | 19.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold, Nickel |
| Features | Shielded |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.5 mm |
| Number of Terminals | 4 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Current Rating | 1.5 A |
| Housing Color | Black |
| Plating | Copper, Nickel |
| PCB Thickness | 1.6 mm |
| Tail Length | 3.3 mm |
| Plating Thickness | 762 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Max RMS Current | 1.5 A |
Stock: 7565
Distributors
pcbx
pcbxUnit Price$1.20144
Ext.Price$1.20144
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20144 | $1.20144 |
| 10 | $1.02176 | $10.21760 |
| 25 | $0.95731 | $23.93275 |
| 50 | $0.91164 | $45.58200 |
| 100 | $0.86803 | $86.80300 |
| 300 | $0.80322 | $240.96600 |
| 500 | $0.77480 | $387.40000 |
| 1000 | $0.73781 | $737.81000 |
